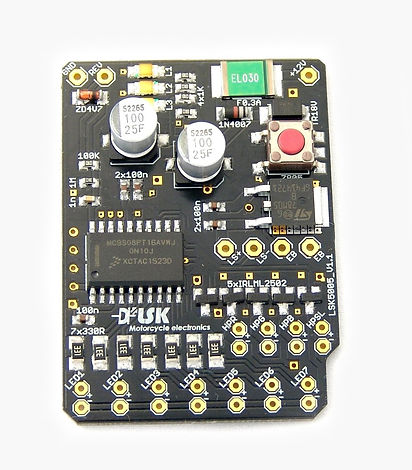

Programmable Shift Light and Revcounter Board

LSK5005

FOR DIY PROJECTS

Powerful multifunctional tachometer suitable for integrating into a motorcycle’s dashboard or constructing your own DIY device. It can be used as a simple revolution counter, but also in addition to a factory-mounted revcounter as a warning before revlimiter like in Triumph Speed Triple (including flashlight when close to the limiter). There is also another output to use the device as a so-called “shift-light” – it will flash when a certain revs were reached. Moreover it can be used as RGB LED controller that causes smooth color changes depending on RPM.

€17
8€ worldwide shipping

Detailed info in

user's manual

  • Ideal as control unit for Shift Light
    indicators without control electronics

  • Controller for many kind of devices based
    on LEDs and engine speed - tachometers...

USAGE
POSSIBLE FUNCTIONS

REVCOUNTER

  • 3 to 7 LEDs can be connected and activated as a dot or bar mode tachometer measuring between minimal and maximal set RPMs.

  • Revs when all LEDs will start flashing can be set.

  • Revs when Shift Light connected to its own 12V output will start flashing can be set.

SHIFT INDICATOR

  • By setting the minimum RPM to a range about 2/3 of the maximum revs, you will get an shift indicator telling you that the engine is close to maximal speed. This can be combined with flashing in the highest RPM. For example, this feature is used in stock speedometer of Triumph Speed Triple - see this short video on YouTube.

SHIFT LIGHT

  • Flashing of all LEDs or only a connected Shift Light can be set at any RPM from 400 to 29 900 with 100 RPM steps.

DRIVING MULTICOLOR LED WITH ENGINE SPEED

  • Device can drive multicolor LEDs according to RPM of
    engine.

  • 3 separated 12V outputs for red, green and blue
    chip of LED

  • Device is equipped with an input
    for sensor (included) that measures amount of light in environment and controls brightness of LEDs according to the actual lightning conditions. (It is possible to turn this feature off.)

AUTOMATIC LED BRIGHTNESS CONTROL

INPUTS AND OUTPUTS
WHAT YOU GET IN THE PACKAGE

Plastic covers (not included)

You can download 3D models of plastic covers designs here and print on 3D printer (not included in standard package)

Waterproof cover for board and equipped LEDs

  • Button can be pressed.

  • Menu LEDs remains visible

Menu LEDs holes must be filled with transparent silicone as well as the wiring hole from back of the enclosure.

Curved cover for 3mm round LEDs

Curved cover for 3mm round LEDs

Price and delivery

LSK5005 Programmable Shift Light and Revcounter Board

  • 16EUR

  • Wrldwide shipping from 10 EUR

  • We ships worldwide with tracking number. Shipping uaually takes about 1 - 3 weeks

  • We provides 2 years warranty for all our products


How to order
  1. You can order your board by click at the "Buy Now" button. (Secure PayPal transaction)

  2. Or you can simply E-mail us at info@lskelectronics.com. We like to help you with order as well like with the technical support.
