Yamaha Tenere 700 Headlight Interface Module

How does it work

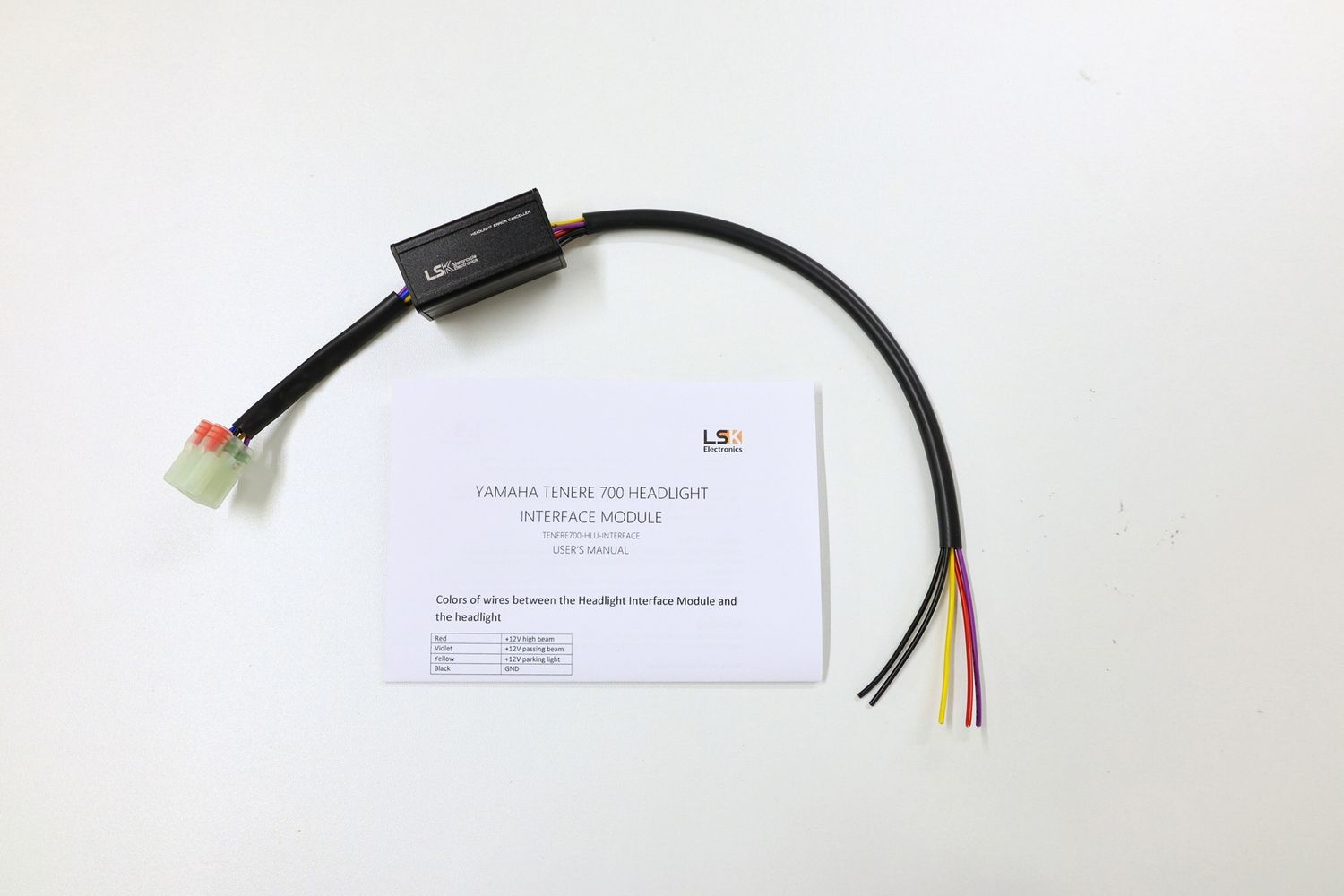

The Yamaha Tenere 700 Headlight Interface Module is a device that allows you to replace the original headlight with an aftermarket one using the bike's original headlight socket. It utilizes the same signals, ensuring that the motorcycle cannot distinguish between the original headlight and the aftermarket one connected through this device. This interface Module fits directly into the original Tenere 700 headlight socket, eliminating the need for any modifications to the motorcycle's wiring harness.

Works perfectly on all Tenere 700 models including 2025.

• There are two versions of headlight connector:
  • 6 pin - all black&white dashboard models / 2025 models (BAG9 model code)
  • 4 pin - color dashboard models except 2025

Functions

Device provides power outputs for low beam, high beam and the parking lamp.

• 8 A (ca 105 W) on low beam wire
• 8 A (ca 105 W) on high beam wire
• 3 A (ca 40W) on parking light wire

For higher currents it is required to use the relay and draw the power directly from the battery.

Documents

• User manual
